External Micro-Channel Heat Exchange Water Tank

Get Latest Price

Min. Order: 1

Contact Now

Product Detail Description

Product Attributes

Model No.: SK-150/200MAD SK-150/200MA

Brand: SACON

Capacity (Liter): 150/200

Power/Voltage: 1.5kW / 220V~240V

Working Pressure: 0.7MPa

Temperature Range (℃): Normal~75

N.W./G.W. (kg): 53/56 64/69 52/59 63/68

Pruduct Size (mm): ⌀510*1310mm ⌀510*1730mm ⌀510*1310mm ⌀510*1730mm

Packing Dimension (mm): 537*537*1375mm 537*537*1795mm 537*537*1375mm 537*537*1795mm

Qty. For 20’(pcs)/40'(pcs): 56/150 52/109 56/150 52/109

Packaging & Delivery

Product Description

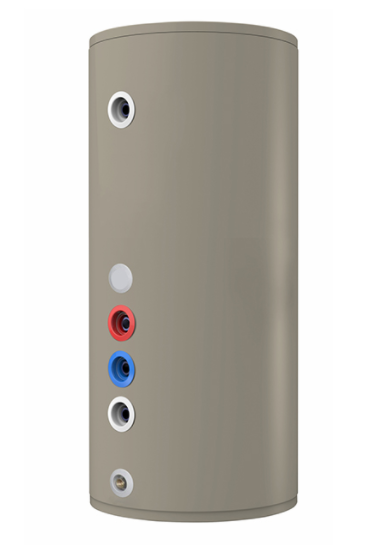

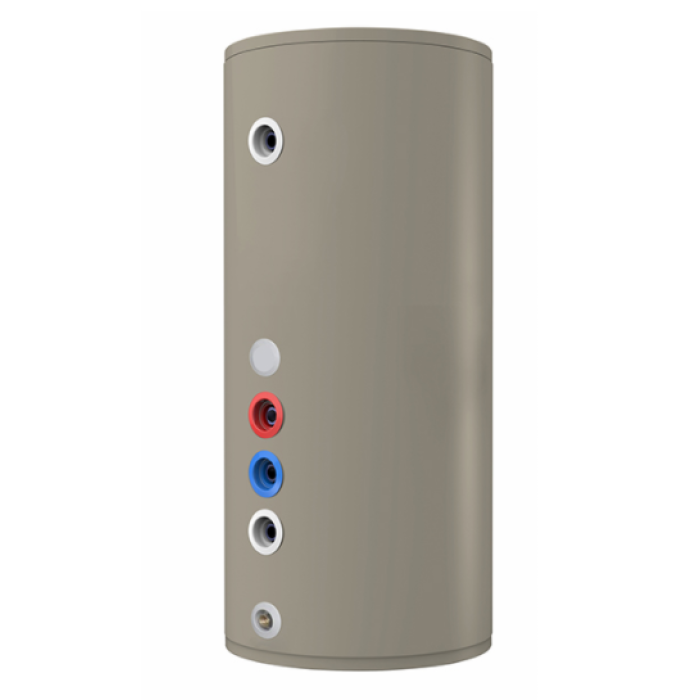

Durable External Micro-Channel Heat Exchange Water Tank | Anti-Scaling & Corrosion Resistant

This External Micro-Channel Heat Exchange Water Tank is a high-performance External Heat Exchange Water Tank and Micro Channel Heat Exchange Tank. As a professional Corrosion Resistant Tank and External Micro Channel Water Tank, it is an ideal supporting device for heat pump hot water systems, widely used in domestic and small commercial water supply scenarios with outstanding durability, efficient heat exchange and simple installation.

Equipped with premium enamel coating and magnesium rod double protection structure, the tank effectively resists water corrosion and extends the overall service life without easy damage during long-term operation. Adopting an external micro-channel heat exchange structure, the device realizes uniform heating and fundamentally prevents scale accumulation, avoiding the common problem of reduced heat exchange efficiency caused by scale in traditional water tanks. Its excellent heat exchange performance ensures fast heating and sufficient hot water storage, providing stable and abundant hot water supply for daily use. Standard reserved hot water interfaces simplify on-site installation and equipment connection, saving a lot of installation time and labor costs.

Available in two models SK-150/200MAD and SK-150/200MA with 150L and 200L capacity options, the tank operates stably with 1.5kW power under 220V~240V voltage, featuring low energy consumption and high heating efficiency. With a standard working pressure of 0.7MPa and a temperature range from normal temperature to 75℃, it adapts to most daily hot water working conditions. For 150L model, N.W./G.W. is 53/56kg with product size ⌀510*1310mm and packing size 537*537*1375mm. For 200L model, N.W./G.W. is 64/69kg with product size ⌀510*1730mm and packing size 537*537*1795mm. The SK-150/200MA model has N.W./G.W. of 52/59kg and 63/68kg. It supports convenient bulk export, with 56pcs/150pcs for 20ft/40ft container (150L) and 52pcs/109pcs for 20ft/40ft container (200L).

It has two core competitive advantages. Firstly, the uniform heat exchange and anti-scaling design maintains stable heat exchange efficiency and continuous hot water supply for long-term use. Secondly, the double anti-corrosion structure adapts to various water quality conditions with ultra-long service life and low later maintenance cost, making it a cost-effective long-term heat exchange and water storage device.
