Home> Products> 30‑100L Electric Storage Water> SACON Vertical Wall‑Mount Storage Water Heater

SACON Vertical Wall‑Mount Storage Water Heater

Get Latest Price

Min. Order: 1

Contact Now

Product Detail Description

Product Attributes

Model No.: DSF-30/40/50/60/80/100JKH

Brand: SACON

Capacity (Liter): 30/40/50/60/80/100L

Power/Voltage: 2.0kW / 220~240V

Working Pressure: 0.75MPa

Min. Inlet Pressure: 0.05MPa

Temperature Range (℃): Normal~75

N.W./G.W. (kg): 13/15 16/18 19/21 20/23 24/28 28/32

Pruduct Size (mm): ⌀380*592mm ⌀380*672mm ⌀380*781mm ⌀380*880mm ⌀450*906mm ⌀450*1016mm

Packing Dimension (mm): 454*454*627mm 454*454*707mm 454*454*816mm 454*454*916mm 540*540*960mm 540*540*1123mm

Qty. For 20’(pcs)/40’(pcs): 225/519 180/470 152/390 149/322 80/224 79/176

Packaging & Delivery

Product Description

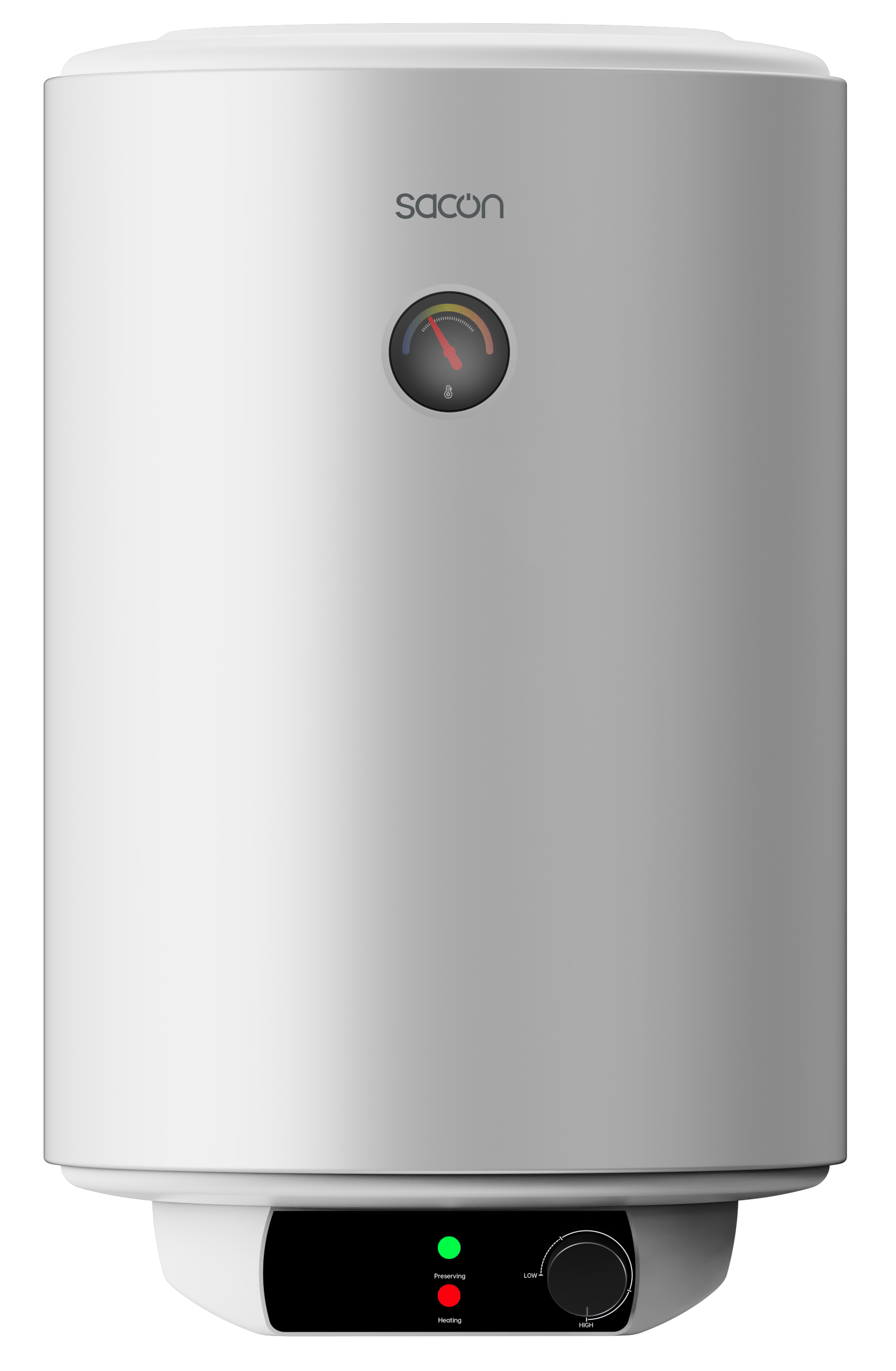

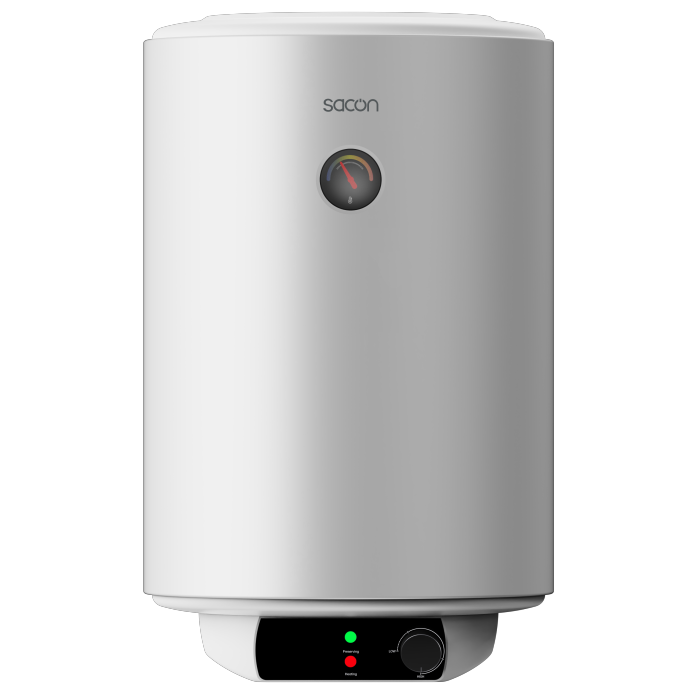

SACON Vertical Wall-Mount Storage Water Heater DSF-JKH

The SACON Vertical Wall-Mount Storage water heater DSF-JKH Series is a highly practical water heating device specially designed for household bathrooms. As a premium Storage Water Heater, it covers multiple capacity options, including the popular 100L Water Heater model. This Large Capacity Heater easily meets the continuous hot water needs of multi-person families. Equipped with high-performance insulation and heating structures, it acts as an excellent Energy Efficient Heater. It heats up quickly and delivers stable and sufficient hot water, making it a reliable High Volume Fast Heating Water Heater for daily bathroom use.

This water heater boasts two core practical advantages for household use. Firstly, it offers dual durable inner tank options, including glass-lined and stainless-steel tanks. Both tank types feature anti-rust and anti-scaling performance, effectively avoiding water leakage and corrosion during long-term frequent use, greatly extending the service life of the equipment. Secondly, it adopts high-efficiency and eco-friendly cyclopentane foam insulation, which locks hot water temperature effectively, reduces repeated heating power consumption, and achieves outstanding energy-saving effects.

Designed with vertical wall-mounted structure and bottom water inlet and outlet, the unit saves installation space and fits most bathroom wall layouts. It features a sturdy painted steel shell for daily scratch resistance and a high-quality durable ABS control panel for stable long-term operation. Built-in temperature indicator allows users to check water temperature clearly at a glance. Multiple PC color options for the front panel are available to match different home decoration styles.

Heating elements of Incoloy 800 and 316L are optional, featuring high temperature resistance and corrosion resistance to ensure stable and fast heating performance. The series includes DSF-30/40/50/60/80/100JKH models with 30/40/50/60/80/100L capacity. It runs on 2.0kW power and 220~240V voltage, with 0.75MPa working pressure, 0.05MPa minimum inlet pressure, and a temperature range from normal temperature to 75℃. Net/gross weight is 13/15kg, 16/18kg, 19/21kg, 20/23kg, 24/28kg, 28/32kg. Complete body and packaging dimensions suit standard household installation, transportation and storage, ideal for residential bathroom hot water supply.
