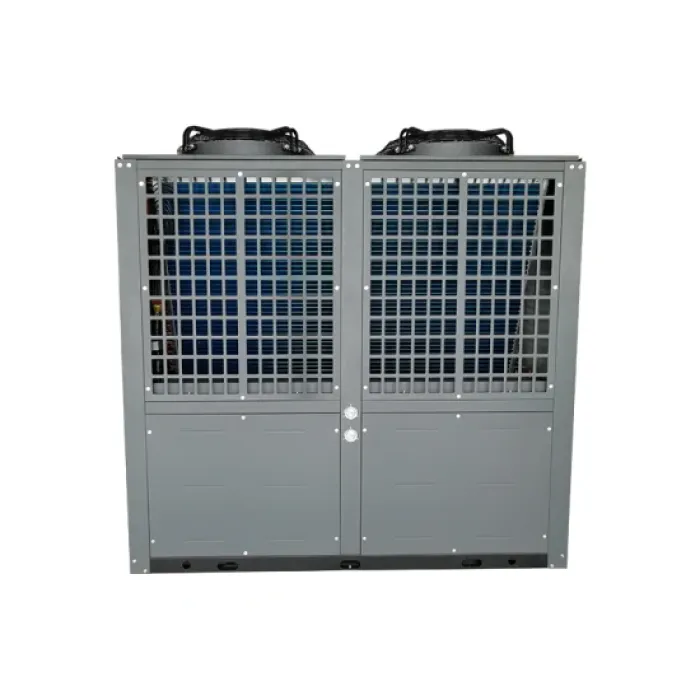

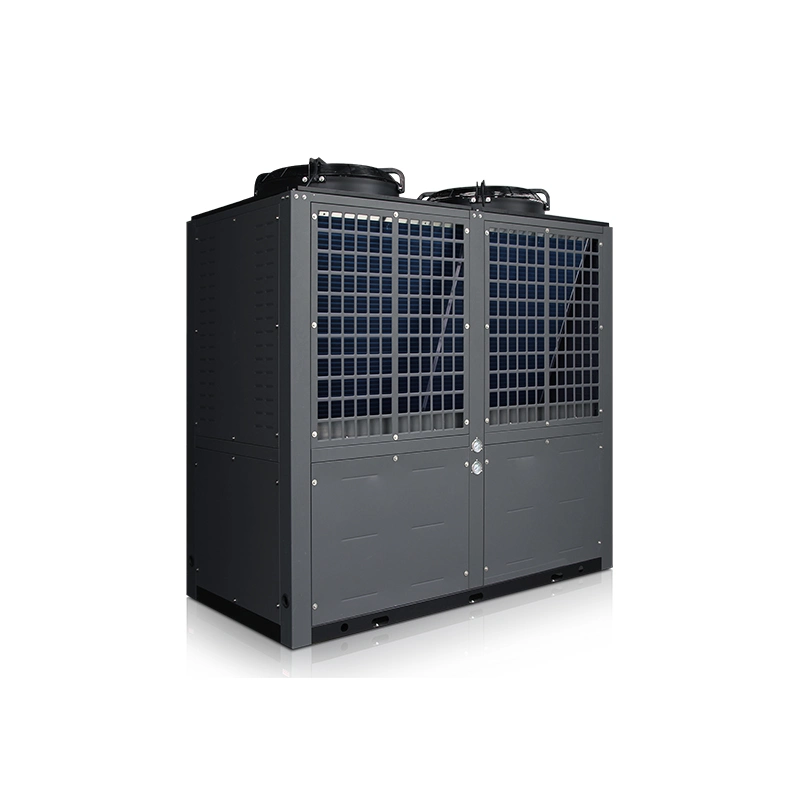

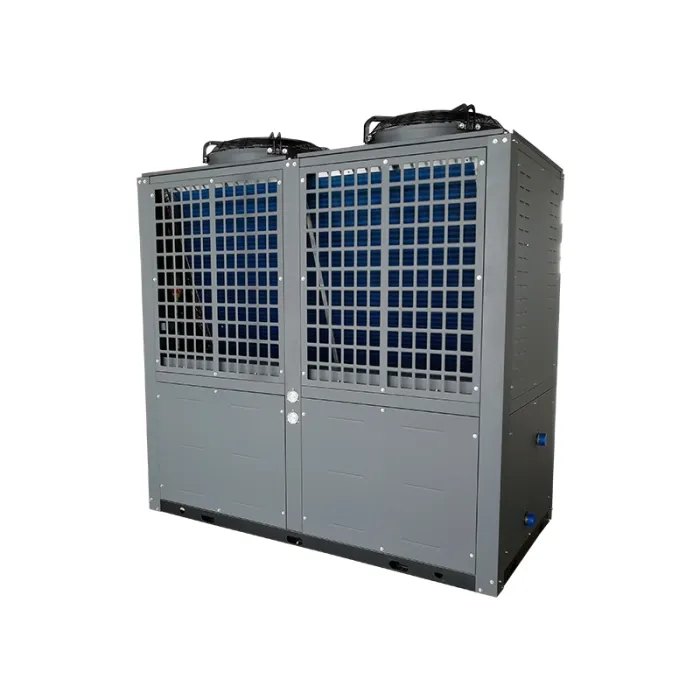

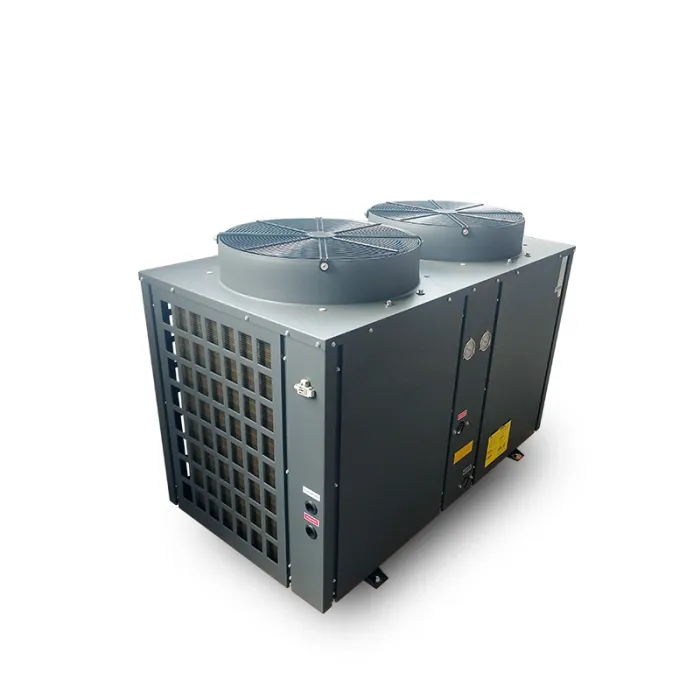

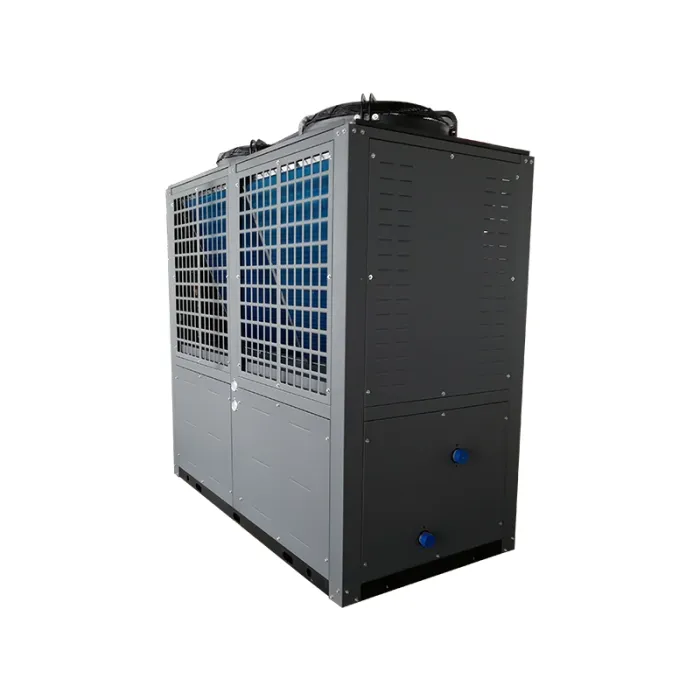

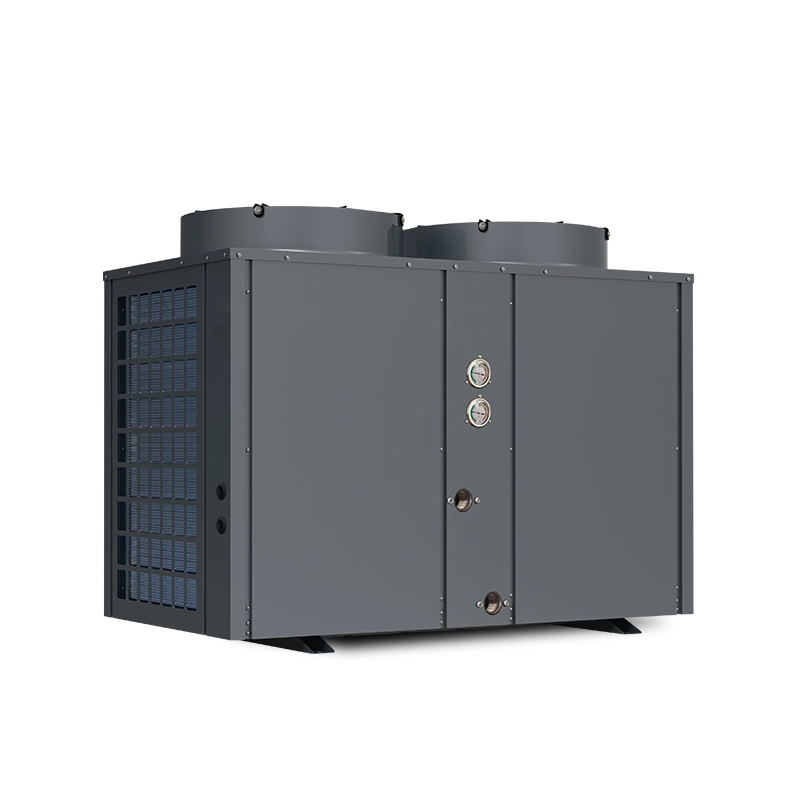

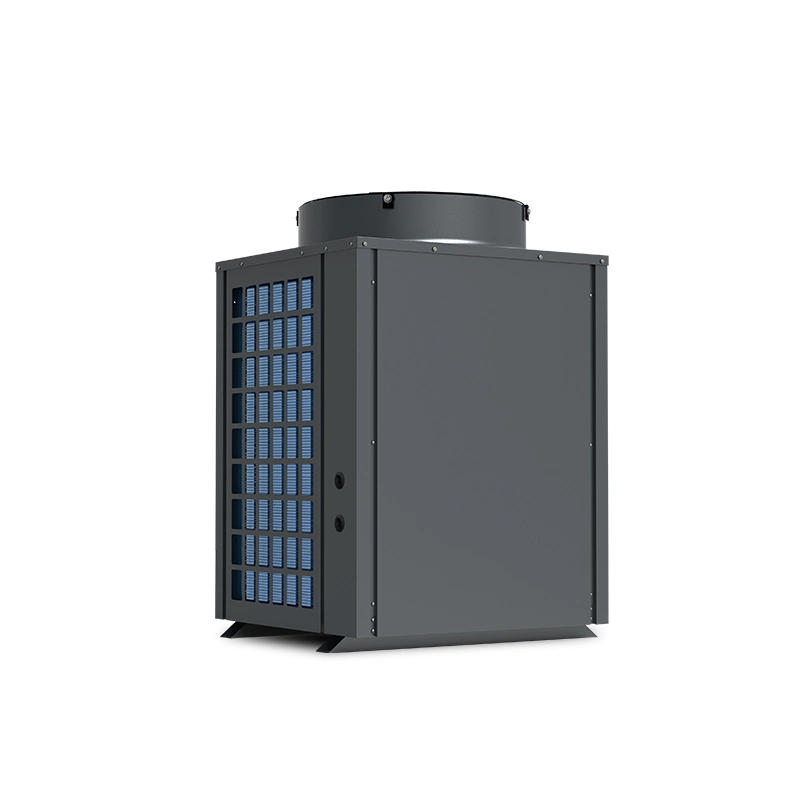

R410A constant frequency monoblock A+++ air source heat pump for school/ hotel /residential area/farm sanitary hot water support.
1). R410A refrigerant,environmentally friendly.
2). High water temperature output up to 60ºC, large hot water supply.

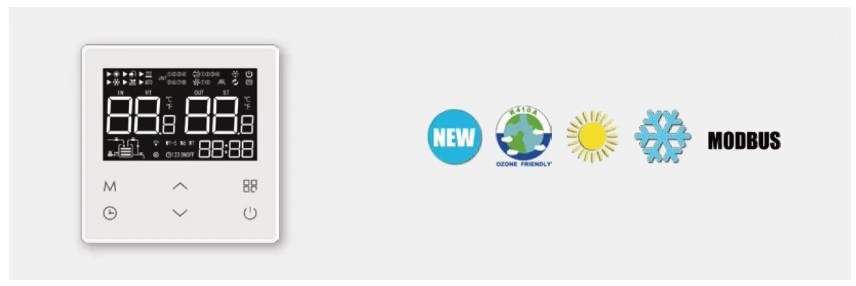

3). Full-automatic: Adopt the smart controller, doesn't need manual operation .
4). adequate heat transfer area ensures the high COP and performance.
5).Operation ambient temperature -15ºC~43ºC,system can be used for hotel ,hospital,school,factory and so on.

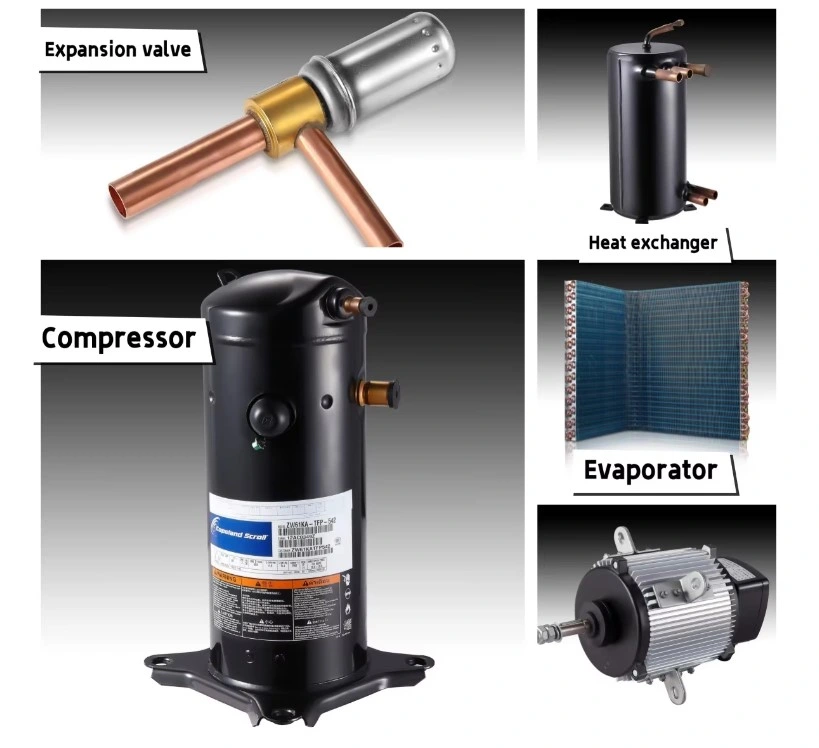

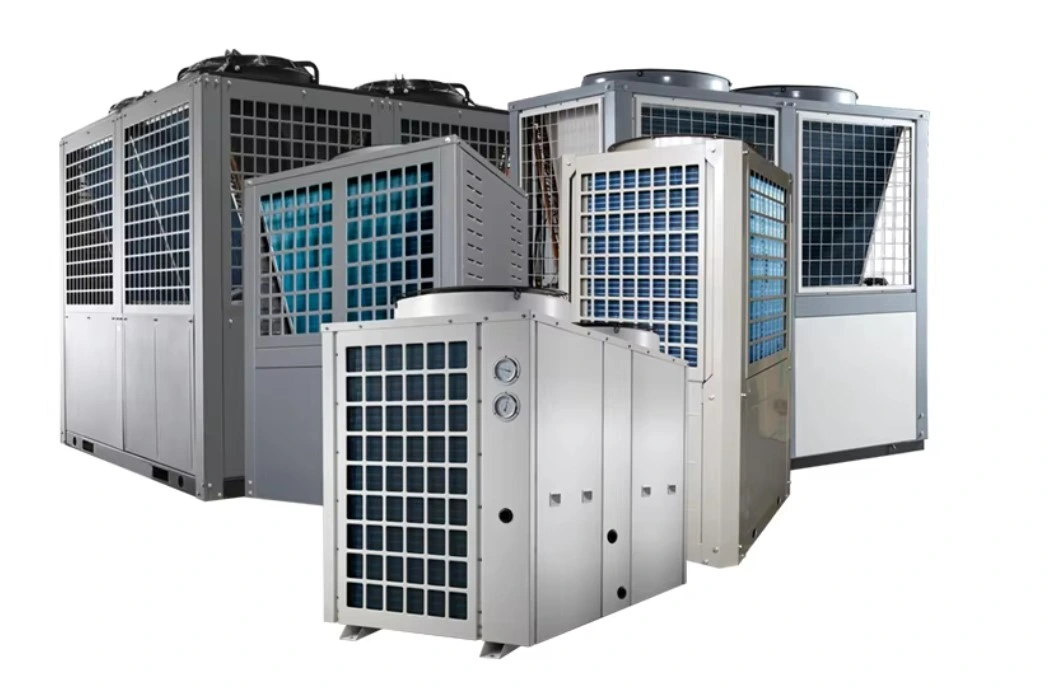

*commercial industrial air to water heat pump contains important components.
Air to water heat pumps are very energy efficient compared to traditional electric water heaters. This is because they use
electricity only to transfer heat from the air to the water, rather than creating heat through a heating element. This can result in significant energy savings over the long term, making it an attractive option for businesses looking to reduce their energy costs.
As we forge ahead,we remain firmly grounded in our guiding priciples of innovation ,sustainability,and customer -centricity.Our mission is to deliver
world-class,eco-friendly heating solutions that promote a sustainable lifestyle while ensuring our customers enjoy a warm and comfortable environment.we are resolute in our dedication to transforming the global heating landspace and leaving behind a healthier planet for future generations.

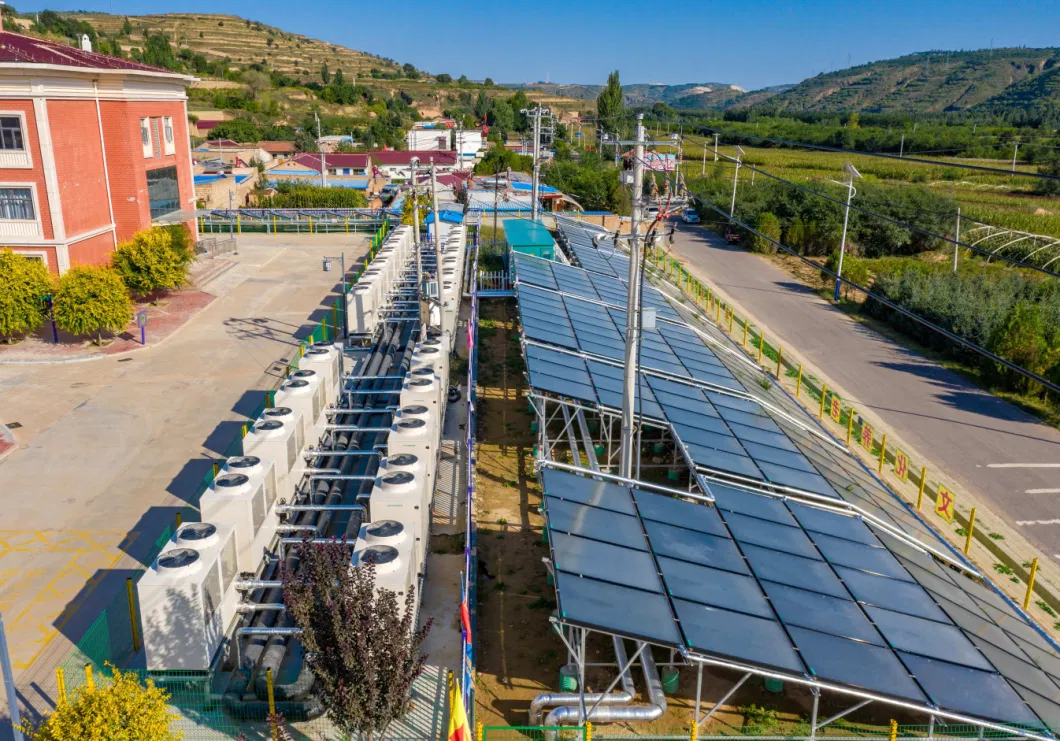

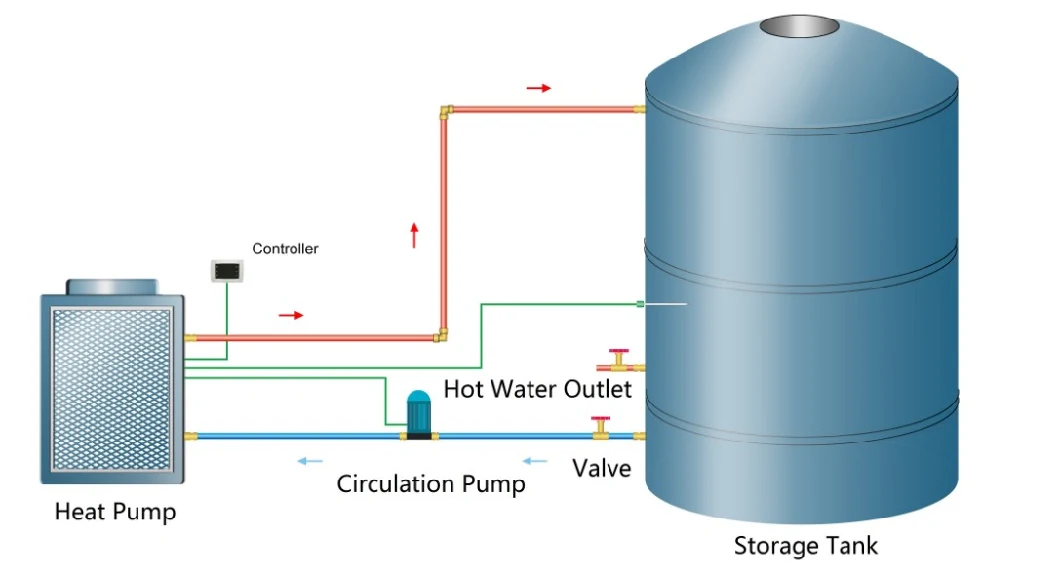

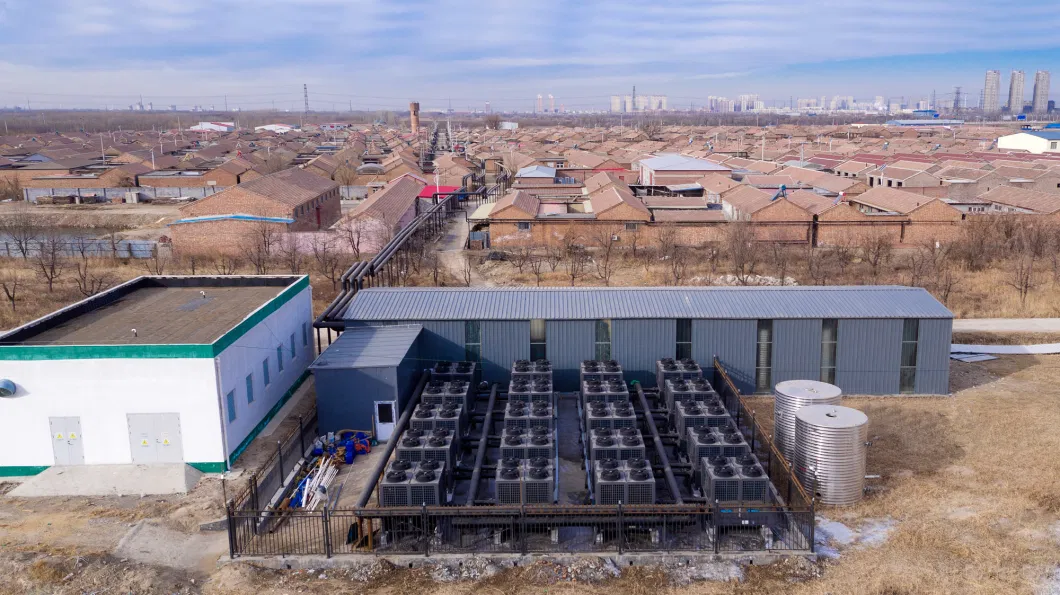

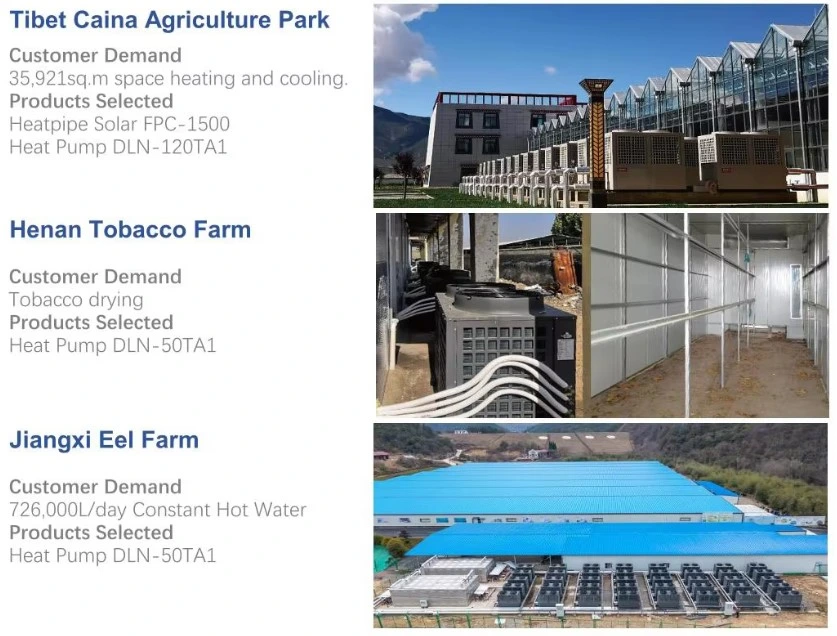

*Usage scenarios,meet the needs of daily life.
| Model No. | RS-019TA1 | RS-022TA1 | RS-032TA1 | RS-038TA1 | RS-045TA1 | RS-076TA1 | RS-090TA1 | RS-100TA1 | RS-200TA1 |
| Power Supply | 380~415V/3/50Hz | ||||||||
| Heating Capacity (KW) | 18.00 | 22.00 | 32.00 | 38.00 | 47.00 | 76.00 | 88.00 | 101.00 | 192.00 |
| Rated Input Power (KW) | 4.20 | 5.15 | 7.40 | 8.75 | 10.82 | 17.70 | 21.00 | 23.38 | 45.90 |
| Rated Current (A) | 7.51 | 9.21 | 13.51 | 15.64 | 19.34 | 32.00 | 37.54 | 41.79 | 80.30 |
| COP | 4.29 | 4.27 | 4.32 | 4.34 | 4.34 | 4.29 | 4.19 | 4.32 | 4.18 |
| Max Power Input(kW) | 7.20 | 8.70 | 12.00 | 13.90 | 16.23 | 28.50 | 31.50 | 33.90 | 68.85 |
| Max Current(A) | 12.90 | 15.60 | 21.60 | 24.85 | 29.01 | 51.00 | 56.31 | 60.60 | 120.45 |
| Water Temp. Range (ºC) | Default 55, 28~60 | ||||||||
| Working temp. range(ºC) | -15~43 | ||||||||
| Anti-electric chock class | I | ||||||||
| Water proof grade | IPX4 | ||||||||
| Water flow volume(L/h) | 4000 | 4500 | 6900 | 8000 | 9500 | 16000 | 18000 | 20000 | 35000 |
| Water Pressure Drop(kPa) | 50 | 50 | 60 | 60 | 65 | 65 | 65 | 65 | 75 |
| Compressor qty. | 1 | 1 | 2 | 2 | 1 | 2 | 1 | 1 | 2 |
| Fan motor qty. | 1 | 1 | 2 | 2 | 1 | 2 | 2 | 2 | 2 |
| Color | Black, Matte surface | ||||||||
| Air Flow Direction | Vertical | ||||||||
| Defrosting | Auto and By manual | ||||||||
| Dimensions(L*W*H)(mm) | 752*691*1000 | 1410*748*1000 | 1250*1076*1870 | 2198*1096*2176 | 2260*1160*2320 | ||||
| Noise(dB) | ≤57 | ≤59 | ≤65 | ≤70 | ≤75 | ||||
| Net Weight(kg) | 155 | 259 | 450 | 650 | 700 | 715 | 1000 | ||
| Water connection(mm) | male 25 | female 32 | male 40 | female 50 | female 80 | ||||
| Gross Weight(kg) | 163 | 269 | 462 | 665 | 725 | 740 | 1035 | ||
| Packing Dimensions(L*W*H)(mm) | 792*741*1151 | 1460*798*1151 | 1250*1076*1870 | 2198*1096*2296 | 2260*1160*2320 | ||||

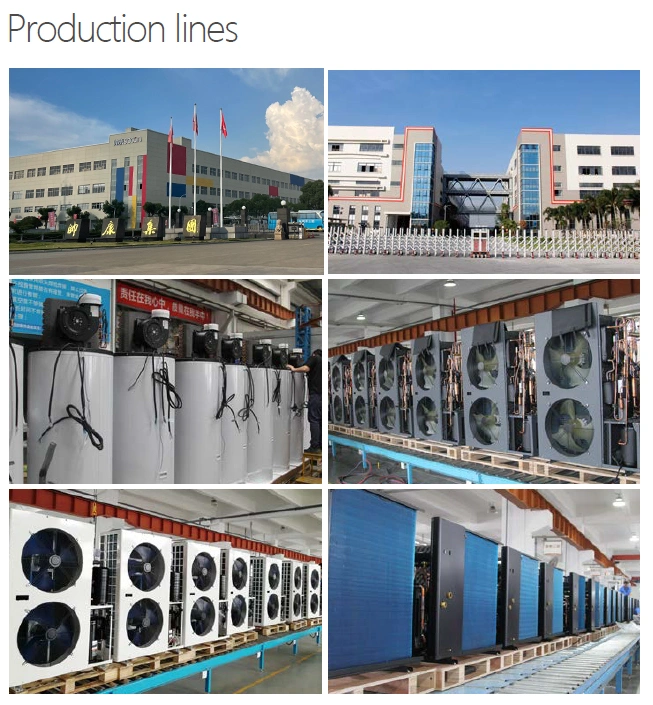

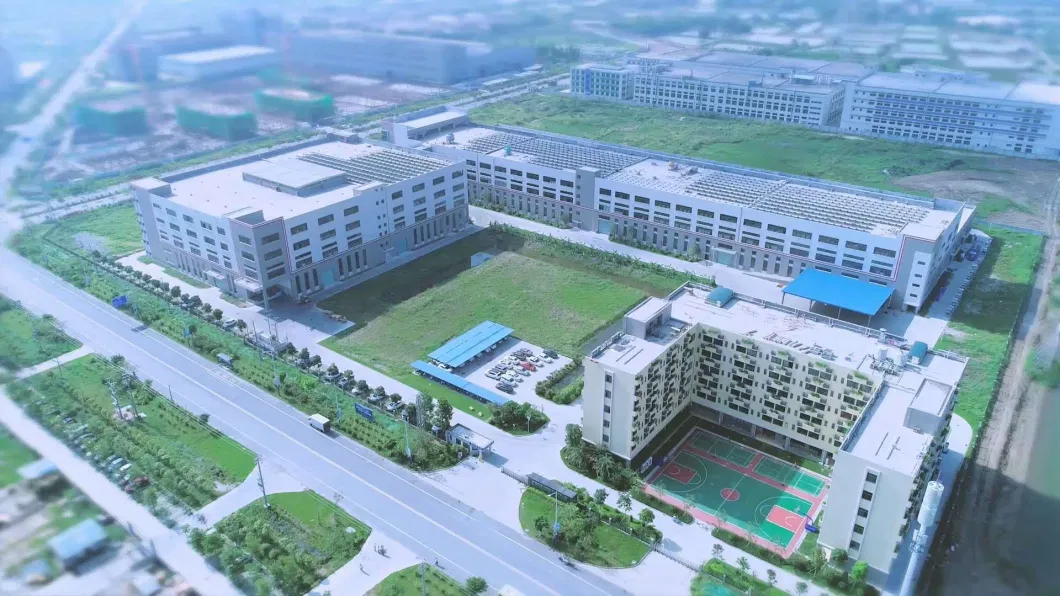

Sacon HVAC,a number of Solareast,which is a prominent player in the energy sector, operates five state-of-the-art production bases across China.Among them, located in Shunde, Guangdong, specializes in the production of air source heat pumps.

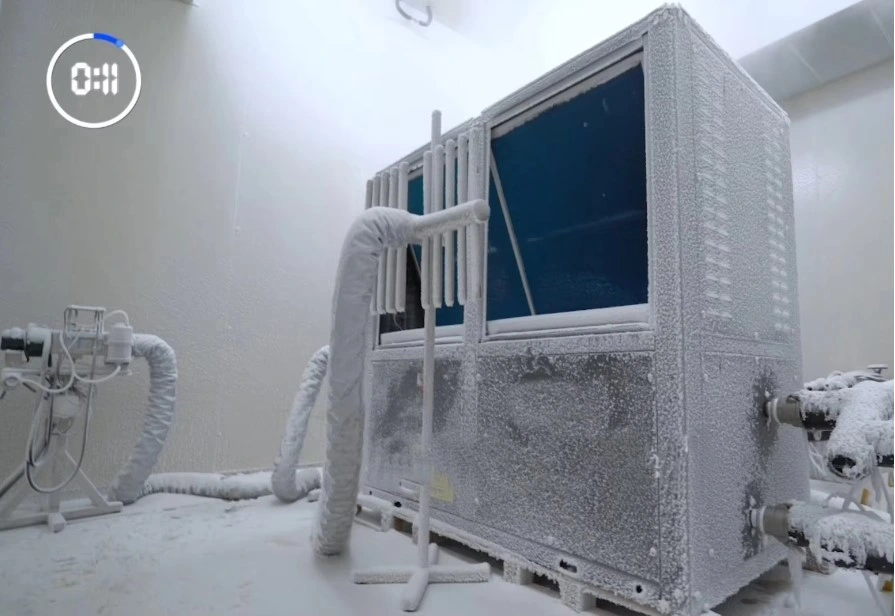

Spanning over 100,000 square meters, we have invested USD 2 million in the construction of advanced testing laboratories. These cutting-edge facilities enable us to rigorously test machines up to 300kW, even in the harshest cold climates, with temperatures as low as -30°C.
Moreover, Solareast Heat Pump Ltd. has received prestigious certifications such as ISO9001, ISO14001,ISO18001, and our products have gained approval from
BAFA,CE, Rohs, MCS, KEYMARK, CB, SAA, ErP, among others.
With more than a decade of experience in air source heat pump technology, Solareast Heat Pump Ltd. stands at the forefront of providing sustainable and highly efficient thermal energy solutions.
Q1 Are you a manufacturer?
Answer: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D, production, sales, and service supply.
Q2: What is your main product?
Answer: Our main products include DC inverter heat pump, air source heat pump water heaters, all in one heat pump, Swimming Pool Heat Pump, ,EVI heat pump and commercial in low temp. areas.
